Objective Focal Length: | 25mm |
Digital Magnification: | 4X |
Detection Range: | 1375 Yards |
Optical Magnification: | 2X |
Sensor Resolution: | 384×288 |
Device Technology: | Thermal Imaging |
Objective F#: | 1 |
Objective Diameter: | 25mm |
Sensor Frame Rate: | 60hz |
Sensor Pixel Size: | 12μm |
SKU: | IRAY-RL25V2 |
Quantity: | |
Manual: | Download |
Shipping: | Calculated at Checkout |
The RICO MICRO has been regarded as one of the most powerful and versatile thermal optics on the market. The new RL25 V2 is an evolution that keeps the well-known compact form factor and advanced feature set, while adding user-requested features and system enhancements focused on improving image quality and ease-of-use.

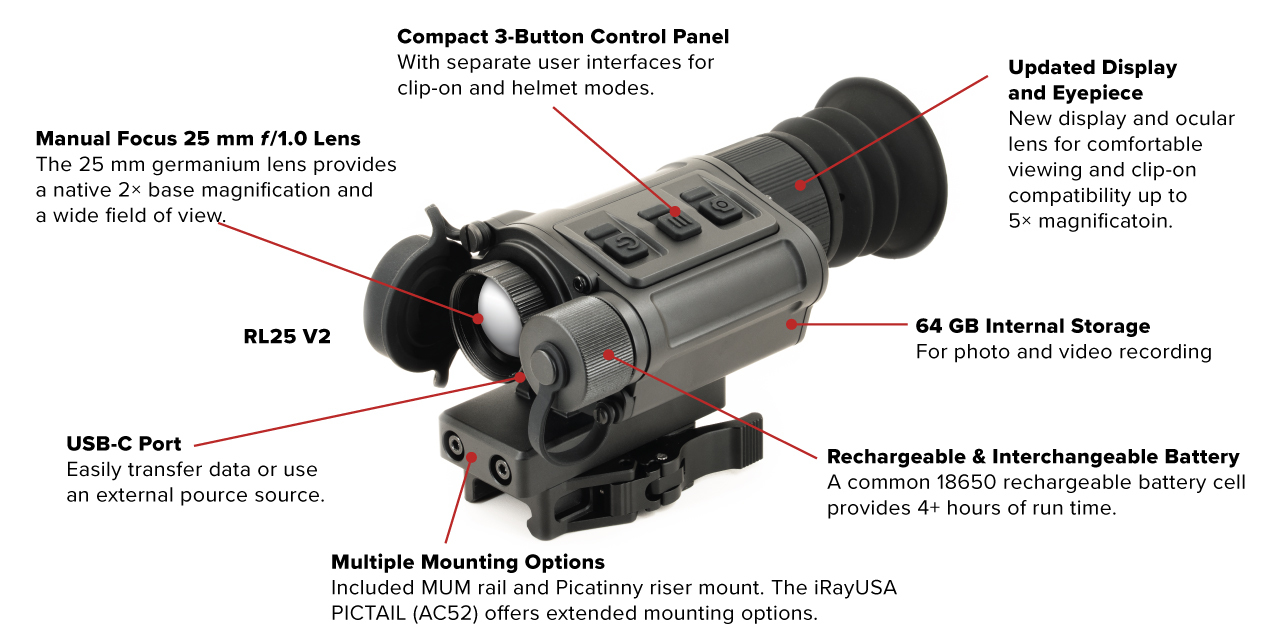

In its newest variation, the RL25 V2 has been updated to provide users with powerful enhancements while retaining the versatility that our customers love; use it as a handheld scanner, helmet-mounted monocular, weapon sight and now a thermal clip-on! The 384x288 12 µm thermal sensor has and improved NETD rating of ≤18mK and is paired with a 25 mm f/1.0 lens to provide a 2x native magnification. New RL25 V2 models feature a machined magnesium alloy housing to reduce weight. An added USB-C port now allows for simplified file transfer and the ability to power the MICRO from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440×1080 AMOLED display is paired with a new eyepiece that offers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification. The new display provides a physical viewing area that is 66% larger than the previous generation, with 97% more total pixels.
-
Laser Specifications
-
Optics
- Objective Focal Length
-
25mm
- Eye Relief
-
45mm
- Digital Magnification
-
4X
- Detection Range
-
1375 Yards
- Optical Magnification
-
2X
- Focusing Mechanism
-
Manual Focus
- Objective F#
-
1
- Objective Diameter
-
25mm
- Objective Lens Material
-
Germanium
- Display Type
-
AMOLED
- Diopter Range
-
-5 to +2
- Vertical Angular Field of View
-
7.9°
- Horizontal Angular Field of View
-
10.5
- Display Resolution
-
1440×1080
-
Features & Performance
- Startup Time
-
<10 Seconds, Instant from Standby
- Reticle
-
7
- Connector Type
-
USB-C
- Color Palettes
-
White Hot, Black Hot, Red Hot, Color
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- Storage Capacity
-
64GB
- Connector Output
-
Power/Data
- Picture-in-Picture
-
No
- Stand-by Mode
-
Yes
- External Power Source
-
USB-C
- Warranty
-
5 Years
- Run Time
-
6.5+
- Power Source
-
USB-C External, 18650 Battery
- Country of Manufacture
-
China
- Wifi
-
Yes
- Onboard Recording
-
Yes
- Image Capture
-
Yes
-
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Recoil Rating
-
1000 g/s² (300 Win./7mm Mag)
- Ingress Protection
-
IP67
-
Physical
- Housing Material
-
Magnesium Alloy
- Length
-
4.52
- Weight
-
11.3 oz
- Height
-
1.88
- Width
-
2.55
-
Sensor Specifications
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
- Sensor Resolution
-
384×288
- Device Technology
-
Thermal Imaging
- Sensor Frame Rate
-
60hz
- Sensor Type
-
InfiRay MICRO II
- Sensor Pixel Size
-
12μm
- Thermal Sensitivity
-
<18mk
- User Interface
- 3 Button Pad
- Startup Time
- <10 Seconds, Instant from Standby
- Reticle
- 7
- Connector Type
- USB-C
- Color Palettes
- White Hot, Black Hot, Red Hot, Color
- User-Updatable Firmware
- Yes
- Mobile App
- Yes
- Storage Capacity
- 64GB
- Connector Output
- Power/Data
- Picture-in-Picture
- No
- Stand-by Mode
- Yes
- Non-Uniformity Correction (NUC)
- Manual, Automatic, Semi-Automatic
- External Power Source
- USB-C
- Eye Relief
- 45mm
- Product Name
- InfiRay Outdoor RICO MICRO V2 384 2X, 25mm Multifunction Thermal Weapon Sight
- Warranty
- 5 Years
- Focusing Mechanism
- Manual Focus
- Housing Material
- Magnesium Alloy
- Objective Lens Material
- Germanium
- Sensor Type
- InfiRay MICRO II
- Thermal Sensitivity
- <18mk
- Display Type
- AMOLED
- Length
- 4.52
- Run Time
- 6.5+
- Power Source
- USB-C External, 18650 Battery
- Operating Temperature Range
- -4°F~122°F
- Diopter Range
- -5 to +2
- Vertical Angular Field of View
- 7.9°
- Horizontal Angular Field of View
- 10.5
- Country of Manufacture
- China
- Recoil Rating
- 1000 g/s² (300 Win./7mm Mag)
- Ingress Protection
- IP67
- Wifi
- Yes
- Onboard Recording
- Yes
- Image Capture
- Yes
- Display Resolution
- 1440×1080
- Weight
- 11.3 oz
- Height
- 1.88
- Width
- 2.55
- Downloads
-
-
Manual:
-
